Description

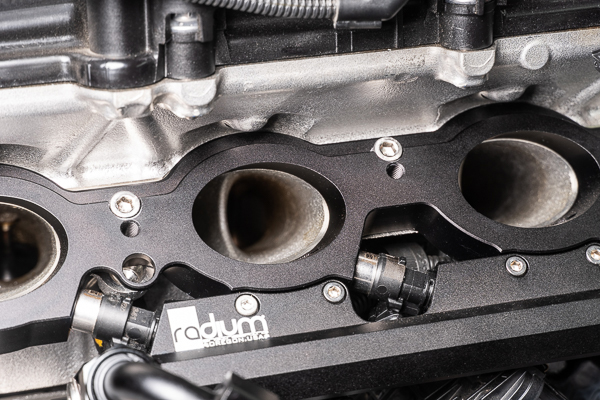

Radium Engineering’s Port Injection Fuel Rail Kit (PIK) installs between the intake manifold and cylinder head. It permits the use of port injectors for the additional fuel required for highly modified B58TU engines. This is a supplementary fuel system, and not a replacement for the OEM direct injection system.

The fuel rail is CNC machined from extruded 6063 aluminium and laser etched for a high quality surface finish. Both end ports are machined with 8AN ORB (3/4-16 female) threads.

The injectors are mounted at a calculated angle to ensure proper spray into the centre of the intake ports without sacrificing interference from surrounding components. Relocation hardware is provided to allow the OEM engine vanity cover to be re-used.

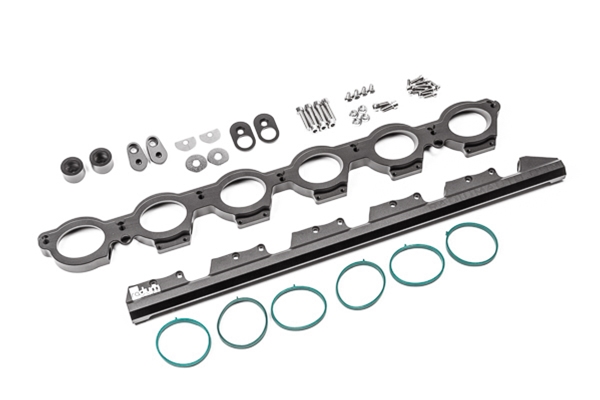

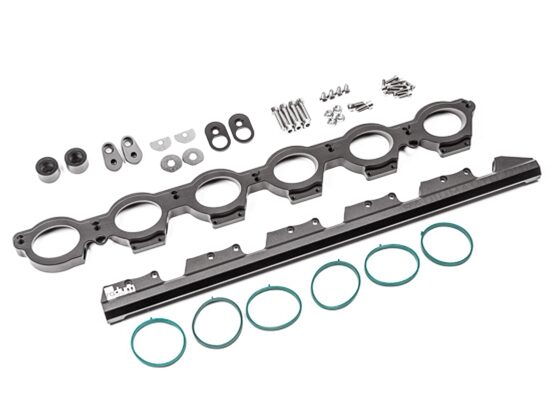

Included:

• Anodized Aluminium PIK Adapter Plate
• Anodized Aluminium Fuel Rail
• Engine Cover Relocation Hardware
• B58TU Intake Port Gaskets (x6)
• Stainless Steel Hardware

Fuel injectors, uprated chargepipe, fuel plumbing and additional injection controller required. For an easy and simple plumbing kit for Z4 and Toyota Supra, use the Radium Fuel Rail Plumbing Kit. To plumb this kit as an entirely separate fuel system (recommended for high power builds) use the Radium Engineering Fuel Pump Hanger and Fuel Pump Hanger Plumbing Kit.

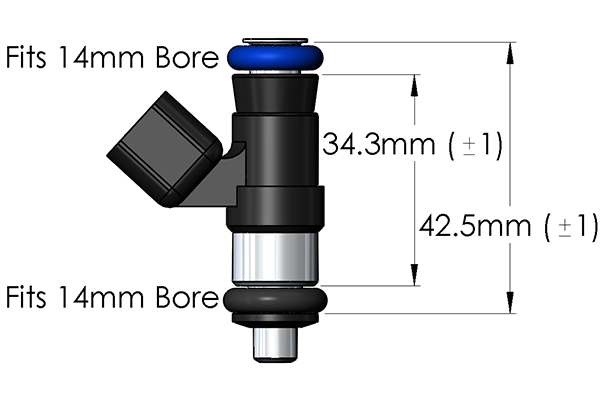

Compatible injectors include the below (Injector Dynamics are available from us by request):

Injector Dynamics ID850-34-14-14
Injector Dynamics ID1050x-34-14-14
Injector Dynamics ID1300-34-14-14
Injector Dynamics ID1700-34-14-14
Injector Dynamics ID2000-34-14-14

Evolved Injection DPI550-38-14-14
Evolved Injection DPI650-38-14-14
Evolved Injection DPI850-38-14-14
Evolved Injection DPI1000-38-14-14
Evolved Injection DPI1200-38-14-14
Evolved Injection DPI1300-38-14-14
Evolved Injection DPI2200-38-14-14

Deatschwerks 16U-00-0042-4
Deatschwerks 16U-00-0050-4
Deatschwerks 16U-00-0065-4
Deatschwerks 16U-00-0090-4
Deatschwerks 16M-00-1500-4
Deatschwerks 16M-00-2200-4

Installation instructions here.
