KPower Complete 86 Swap Package (Toyota GT86)
£11,580.00 – £12,522.00

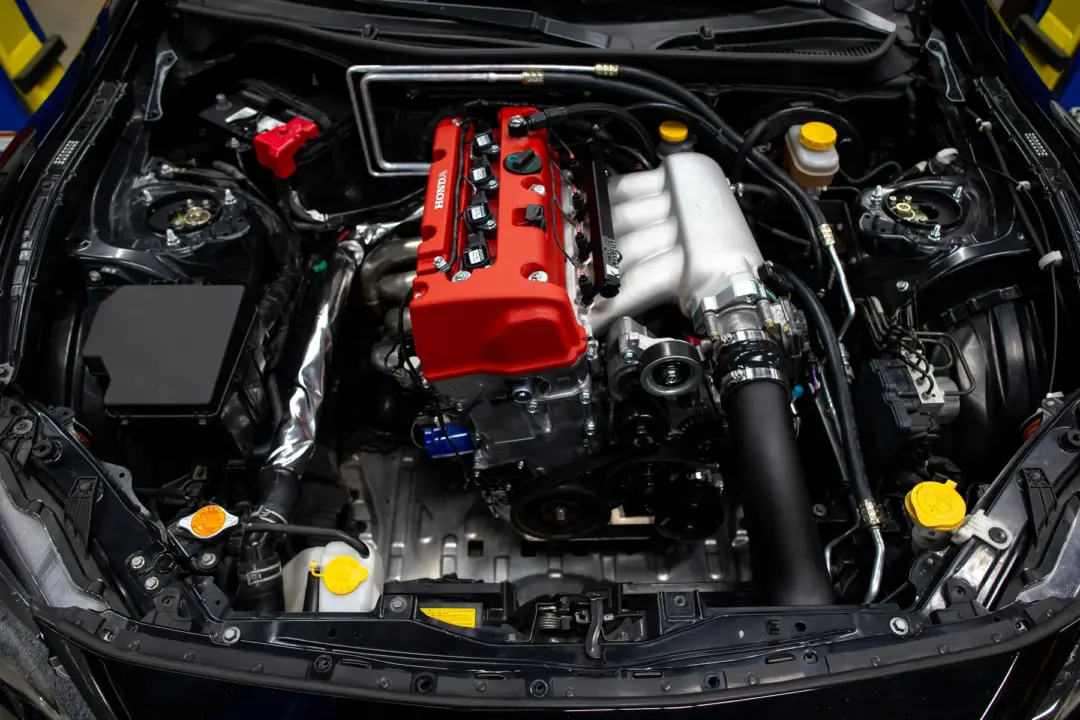

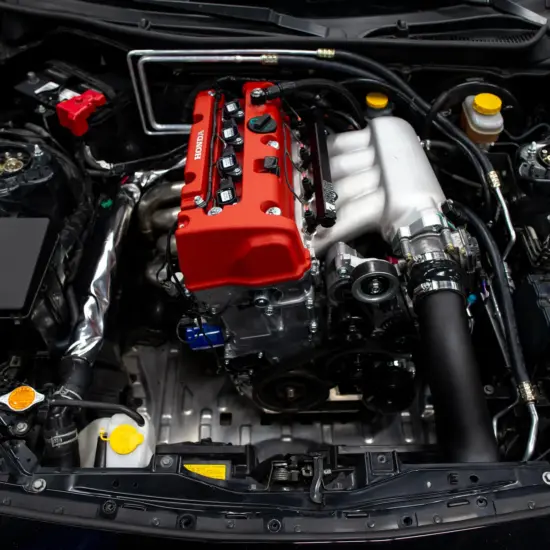

Here it is: the industry’s first all-in, complete engine swap package for a K series. KPower have carried out the development and a huge amount of testing, making changes and improvements every step of the way. This package includes everything they have proven out in their K24 BRZ test car for many months. It fits all 2013-2020 BRZ, FR-S, and 86 manual transmission vehicles.
This package provides all aftermarket parts for a complete K24 conversion in your vehicle. Just add an engine, some OEM parts, and some assembly time, and your 86 will be transformed into the car it should have been from the factory.
Want to learn more about what makes this package so unique? Please read their detailed blog post here.

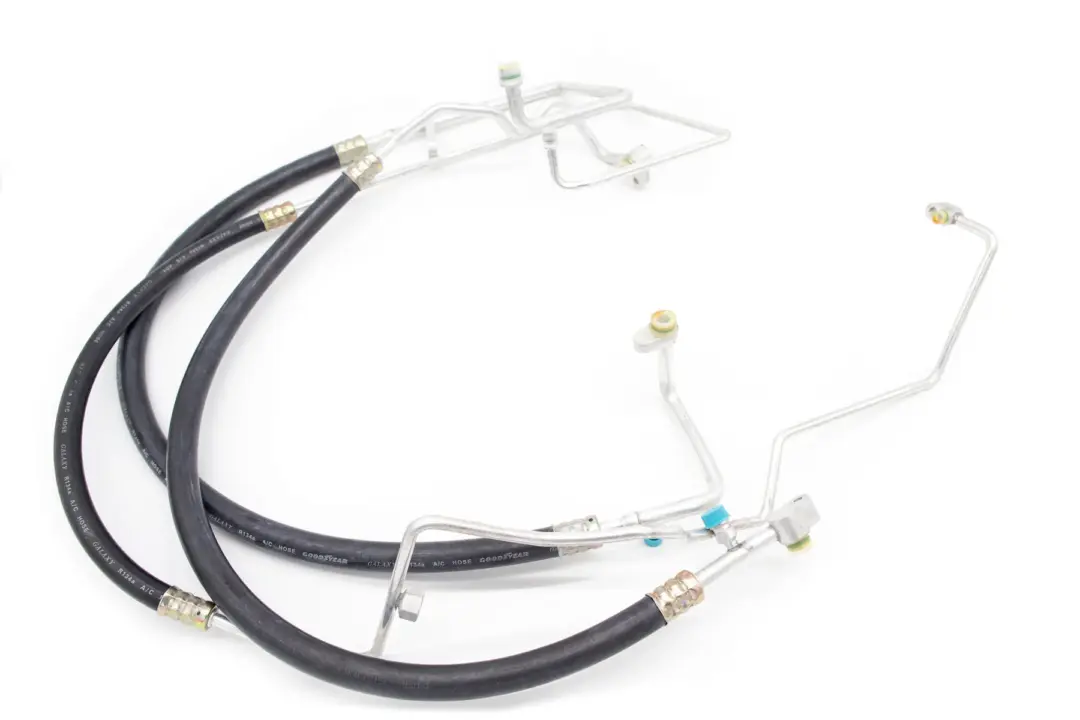

*Please note that A/C lines for this kit will ONLY work with LHD applications.

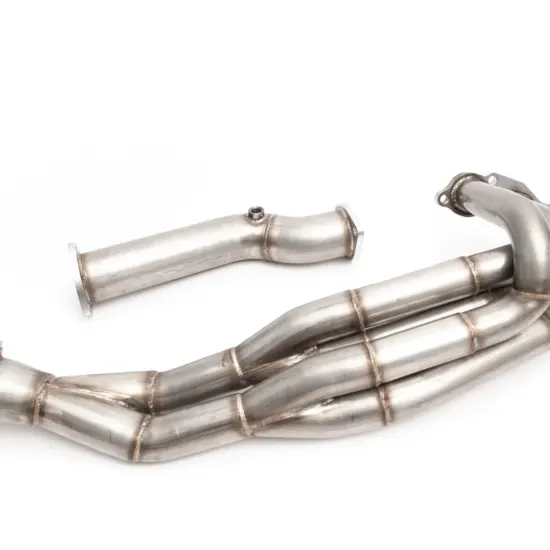

Exhaust manifolds for RHD application available here.
- Description
- Additional information
Description
Description
KPower Complete 86 Swap Package for Toyota GT86

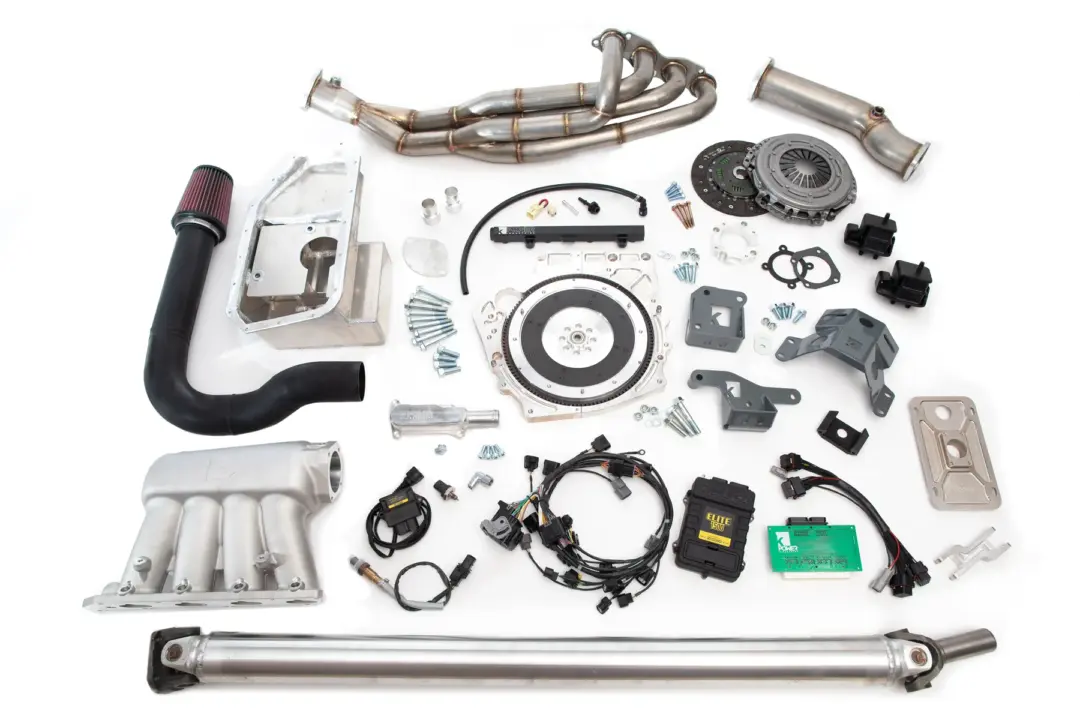

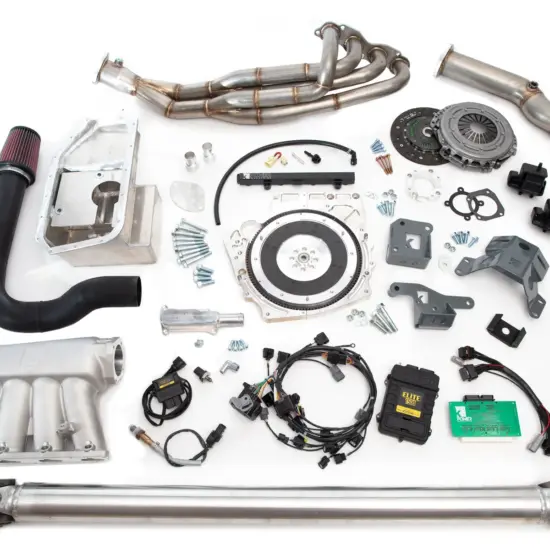

This swap package includes the following products:

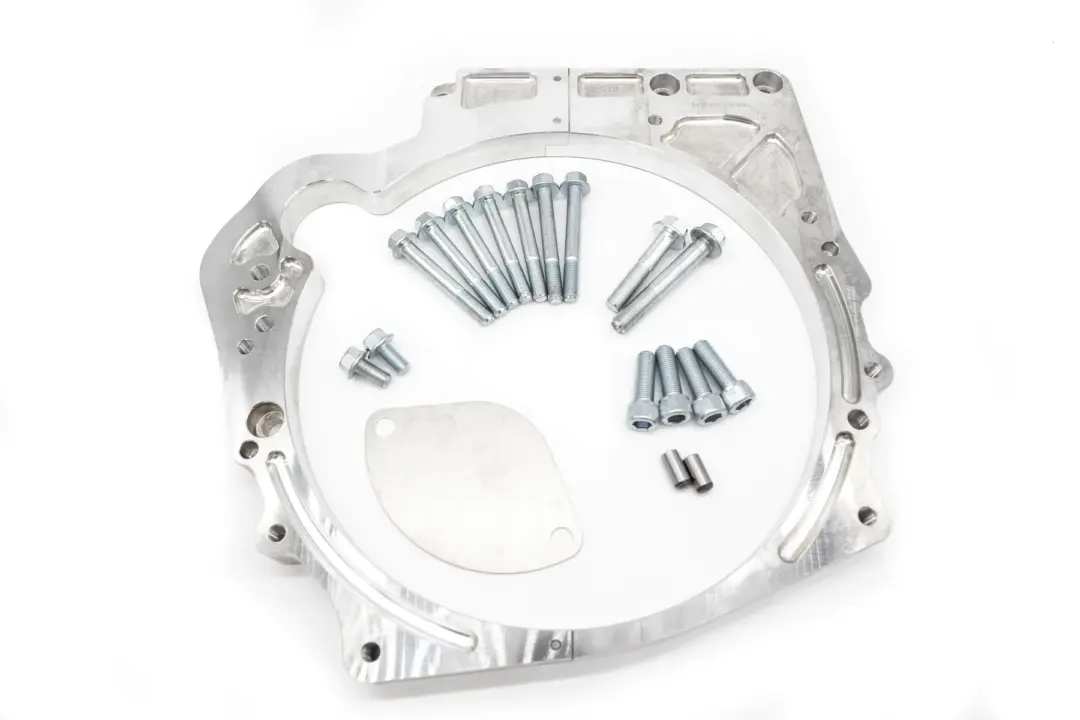

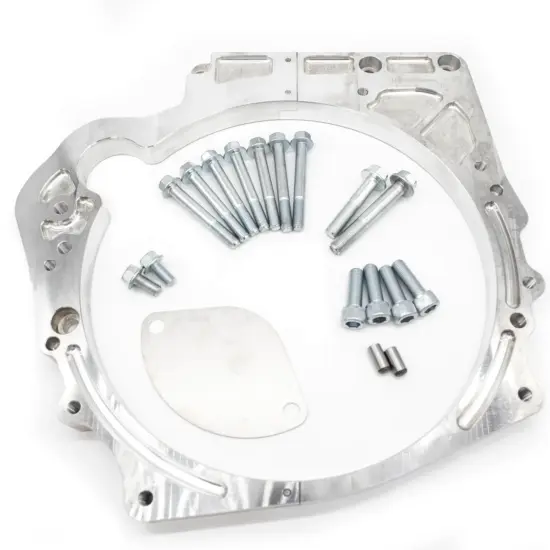

- K24 to 86 transmission adapter plate with all hardware
- 86 starter block off plate

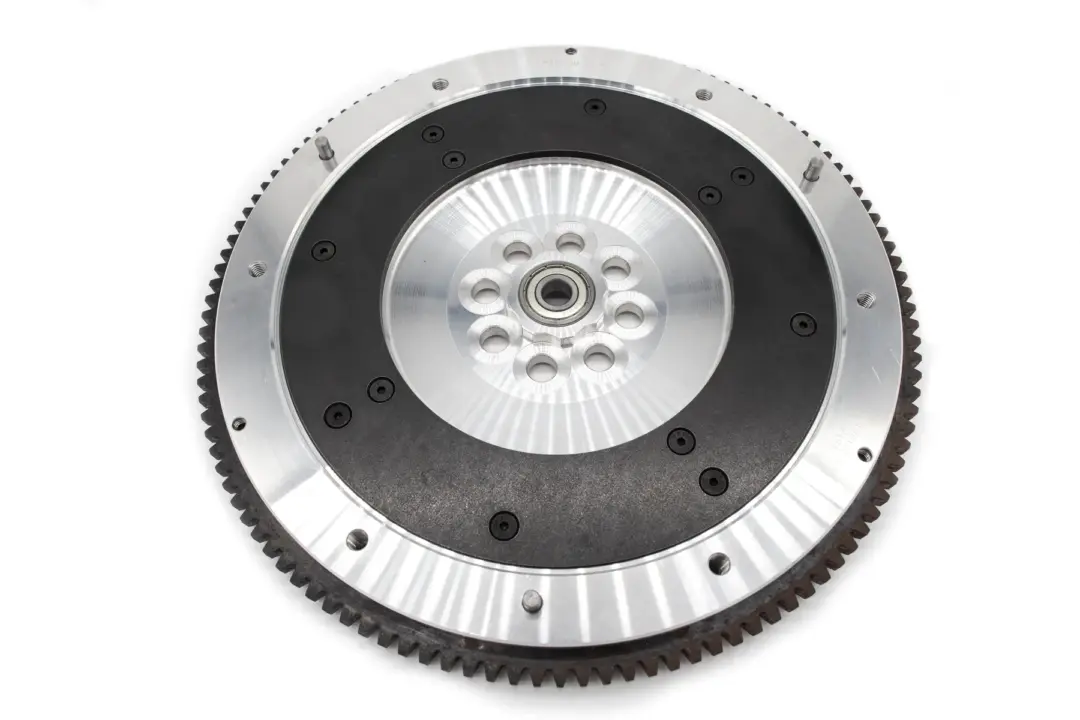

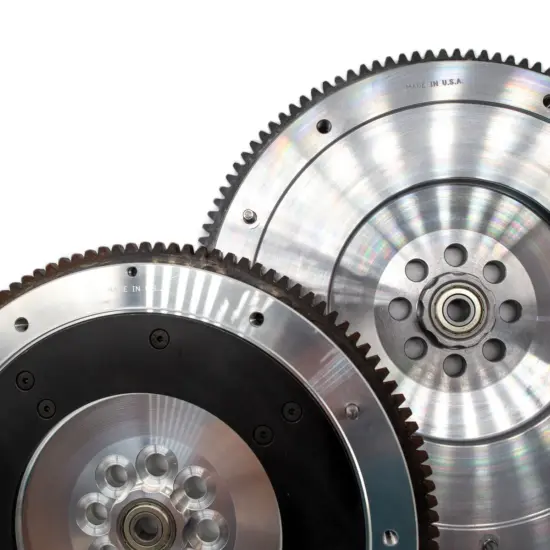

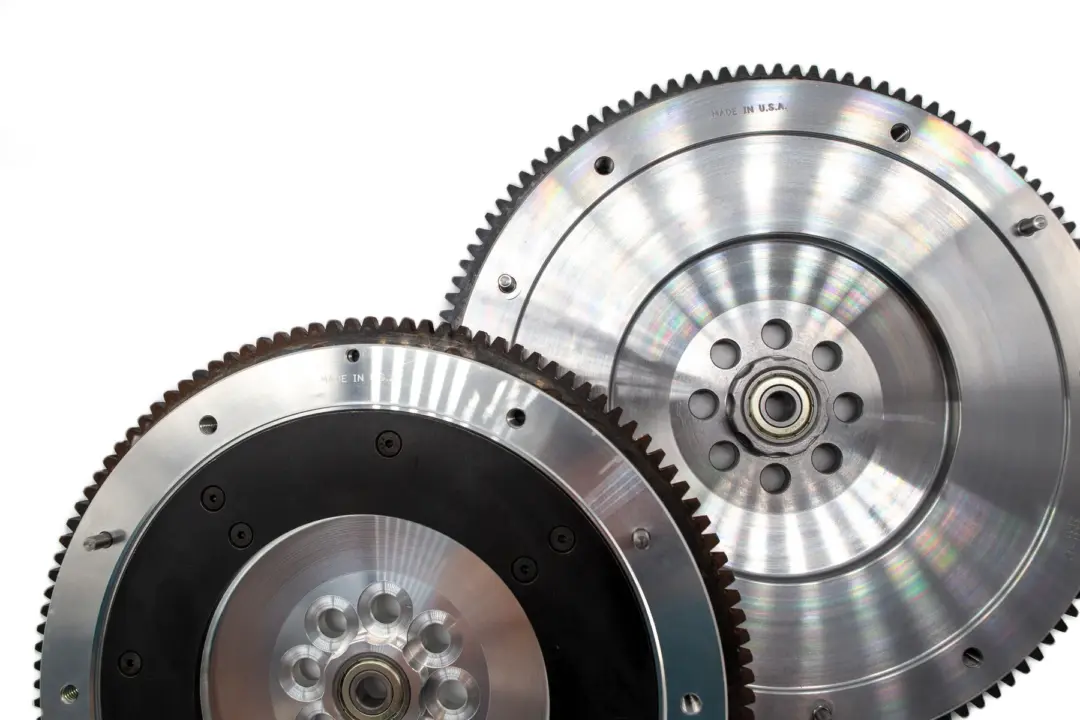

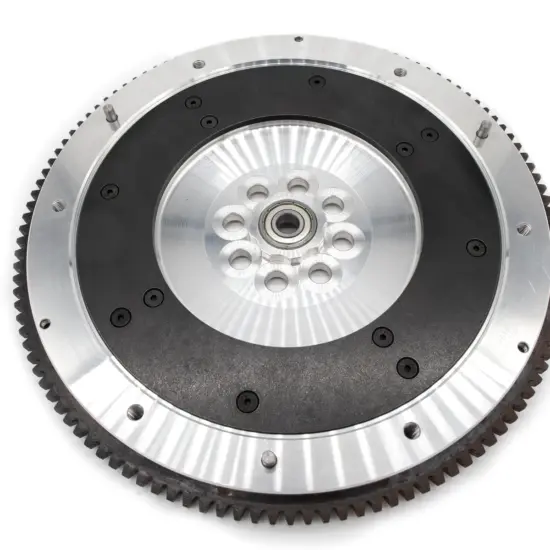

- K24 to 86 custom flywheel – steel is now standard material

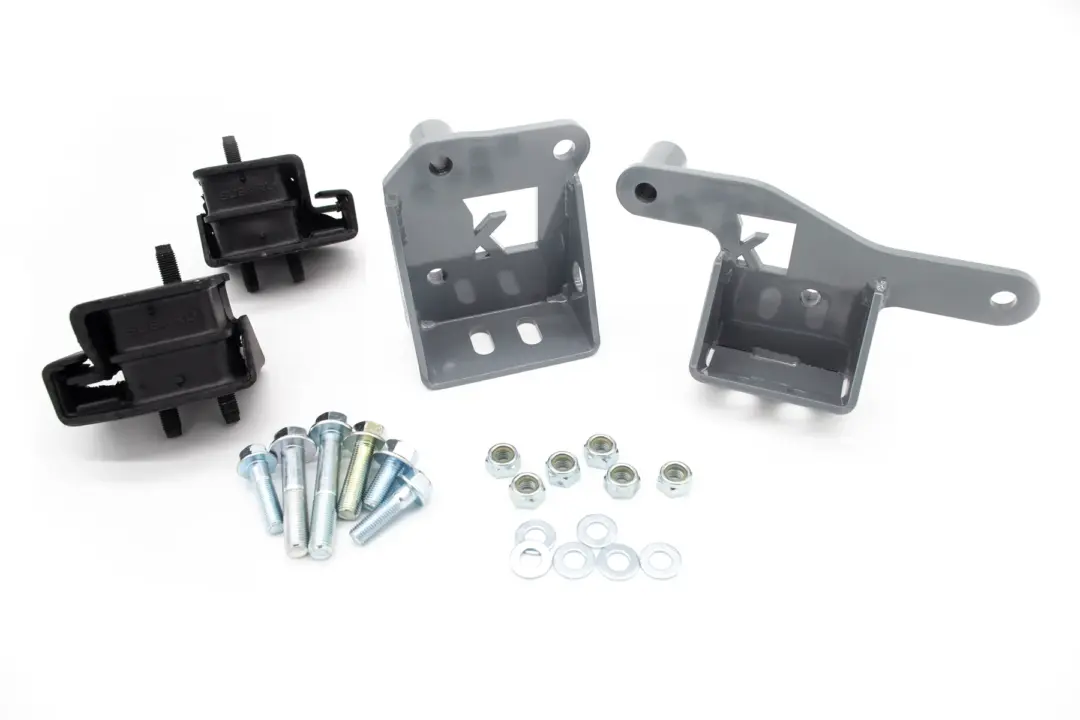

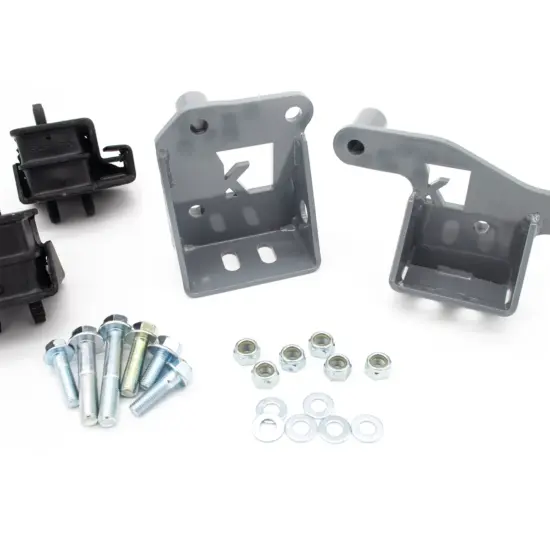

- Engine mount brackets with hardware
- Rubber engine mount pads

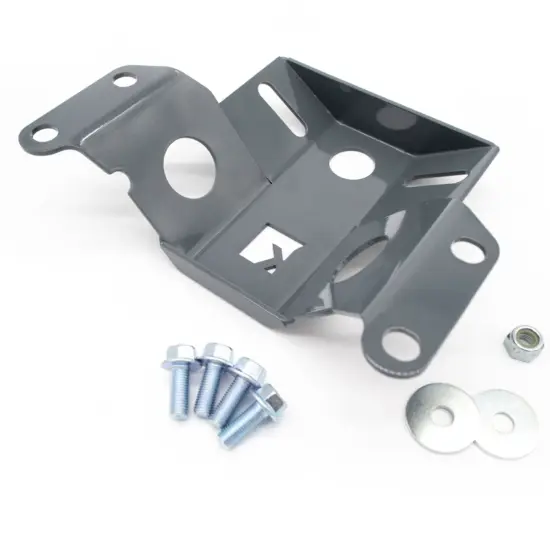

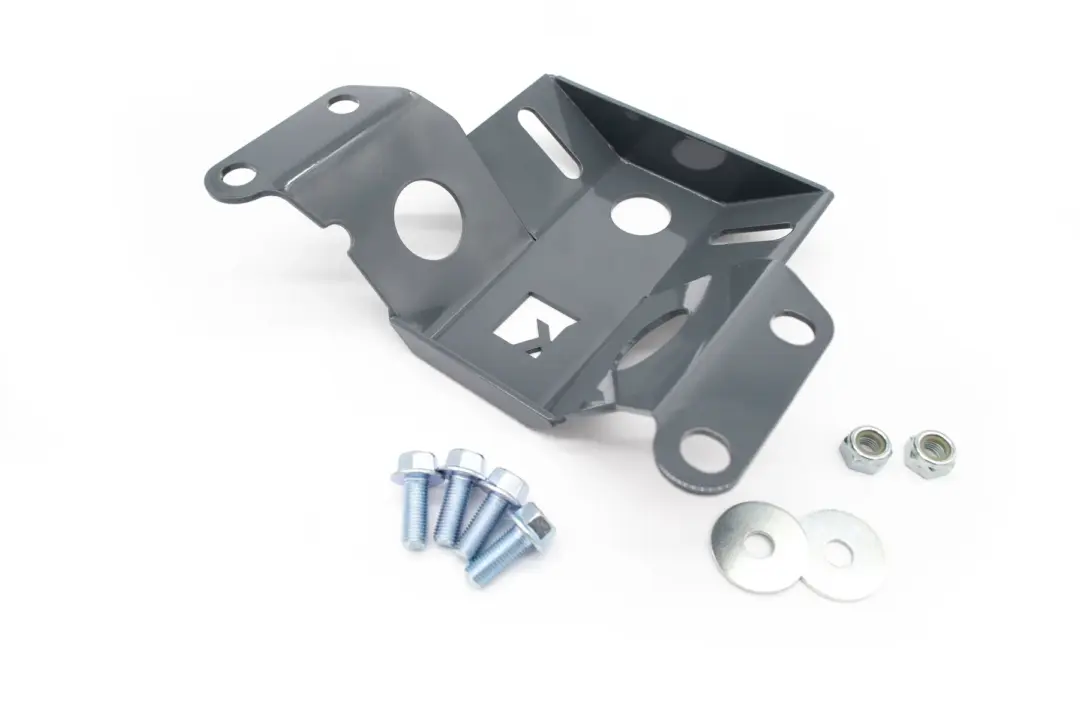

- 86 transmission mount bracket for relocated position, with hardware
- Whiteline transmission mount insert

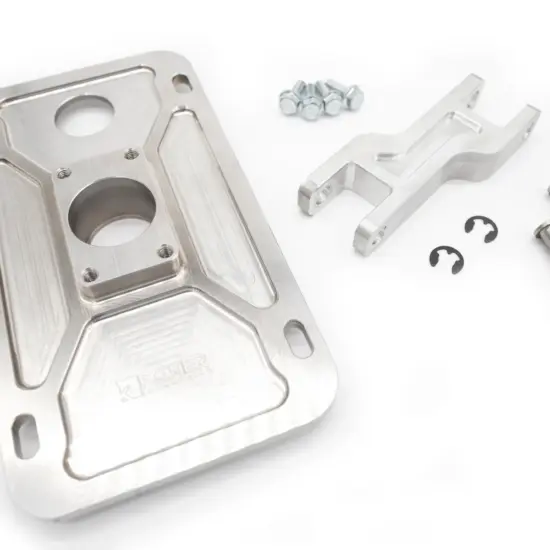

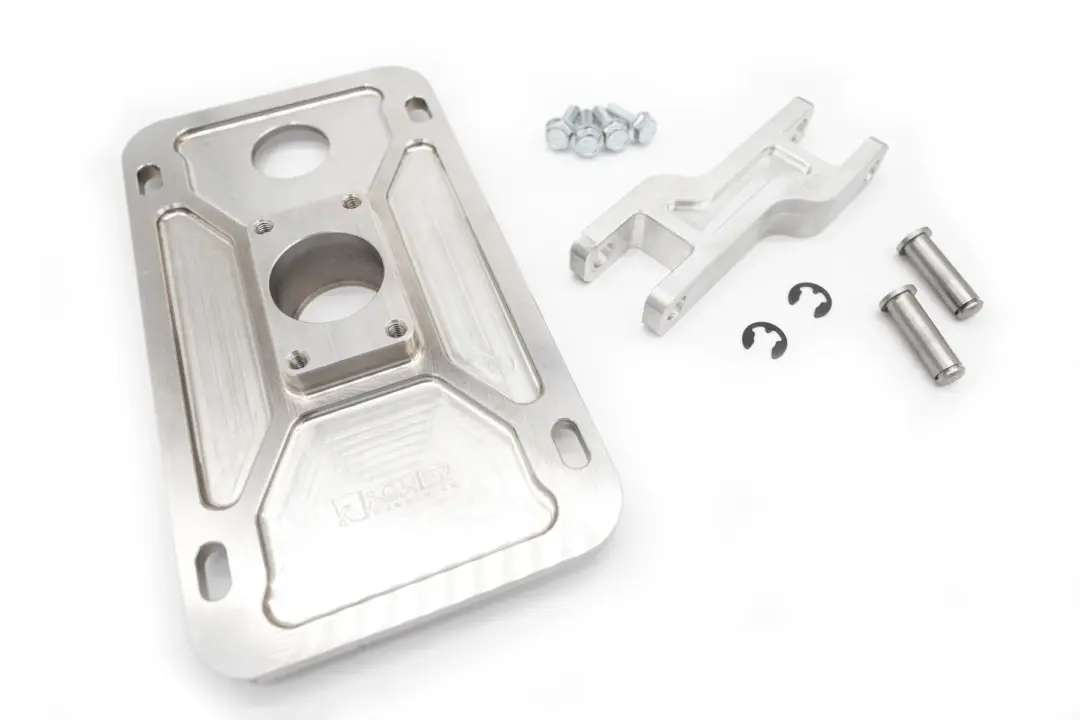

- Shifter plate for OEM 86 shifte
- Dual shear selector rod and pins

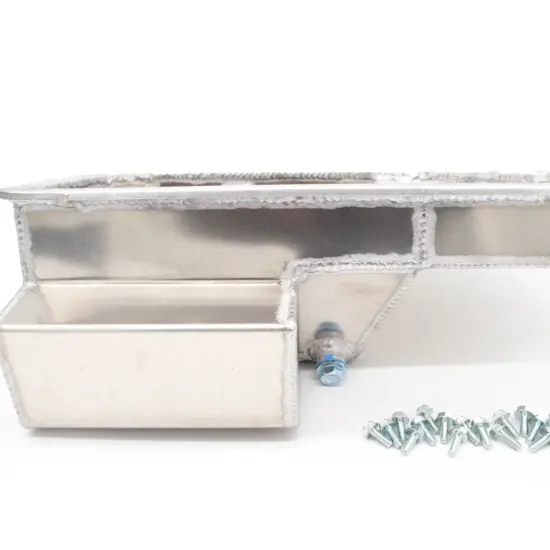

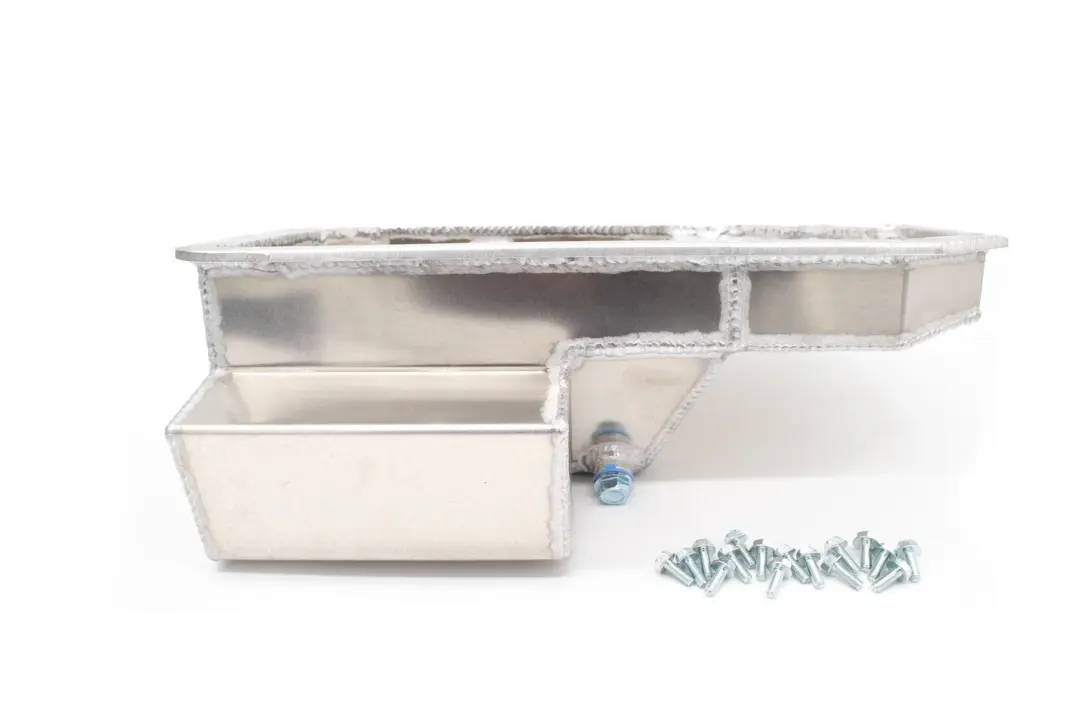

- Baffled aluminium oil pan that clears stock subframe and undertray

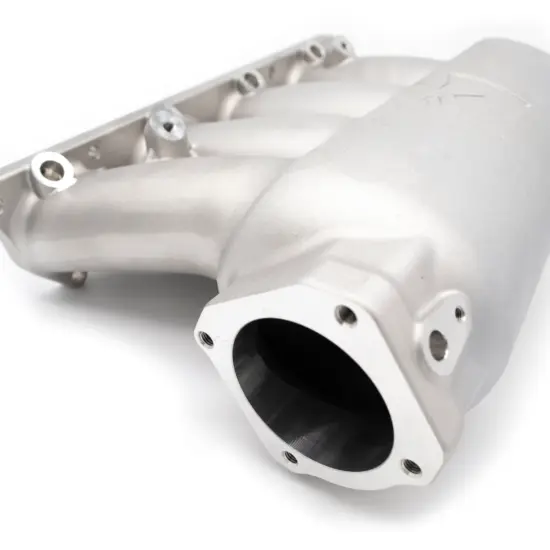

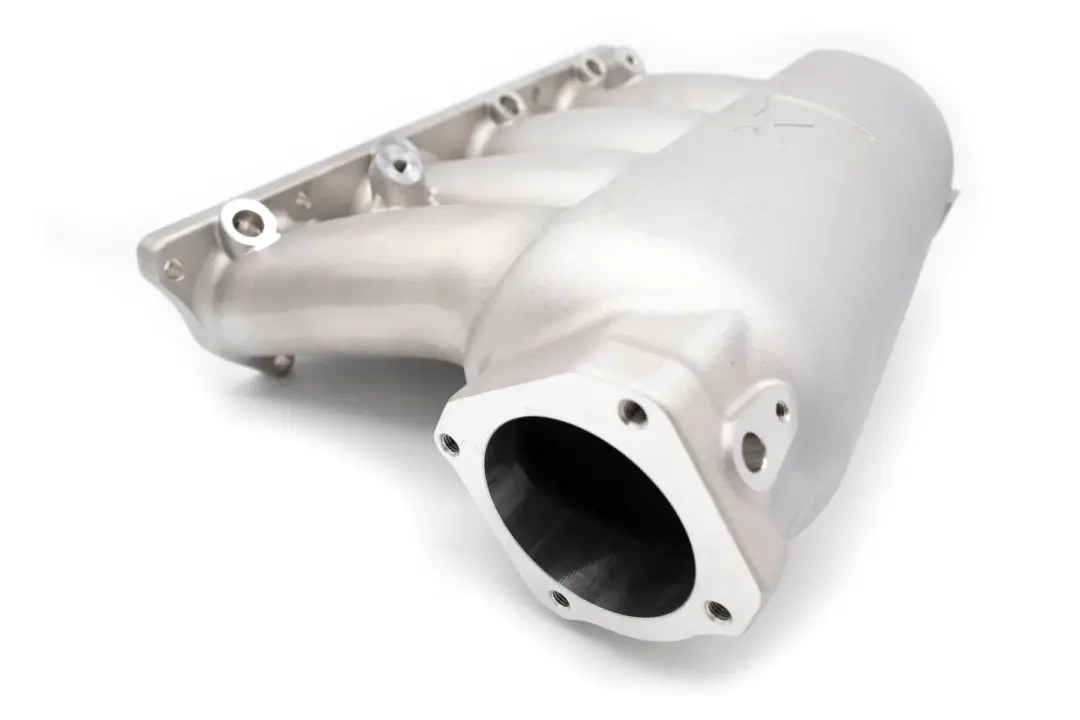

- Cast aluminium intake manifold, with IACV block off plate and hardware

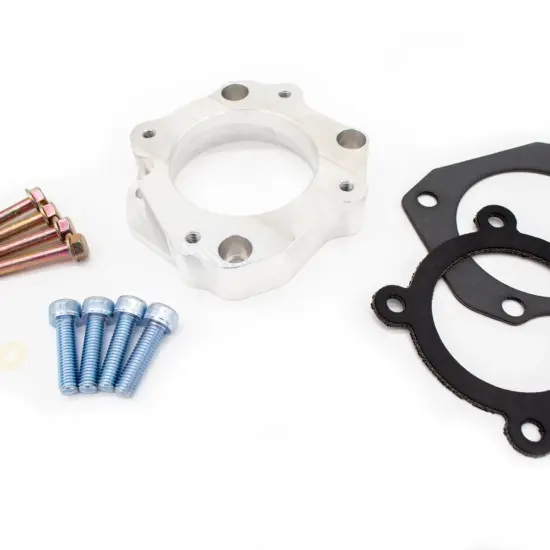

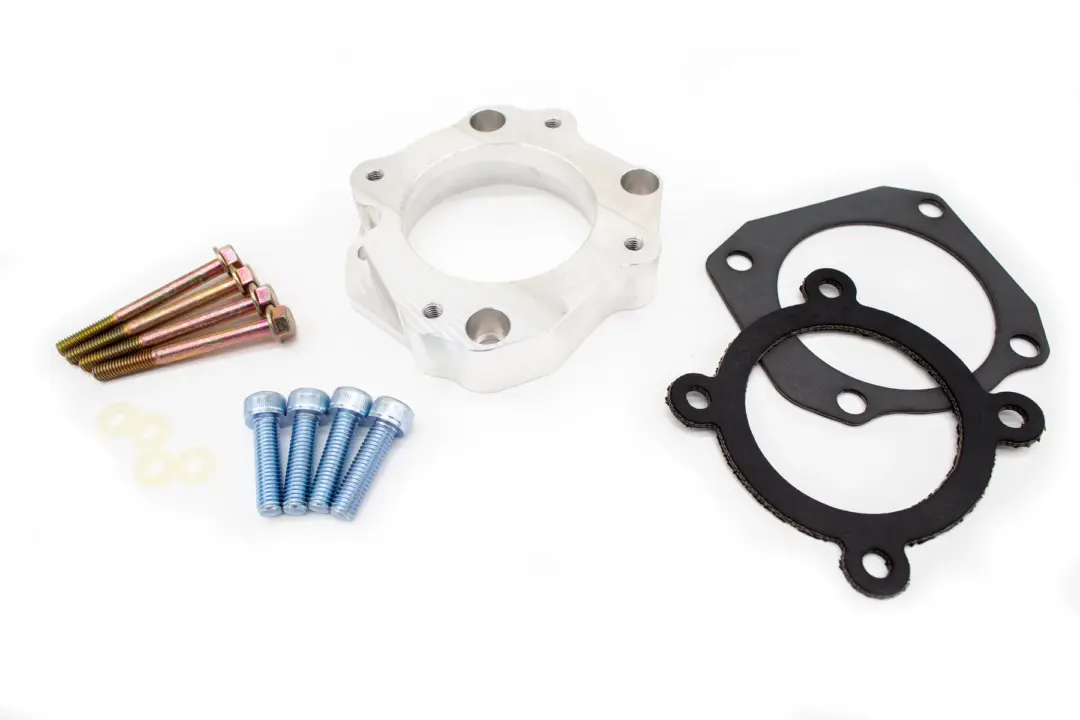

- 86 throttle body adapter with gaskets and hardware

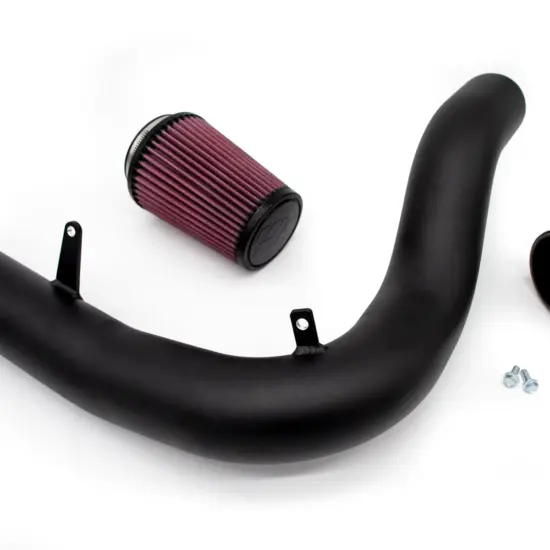

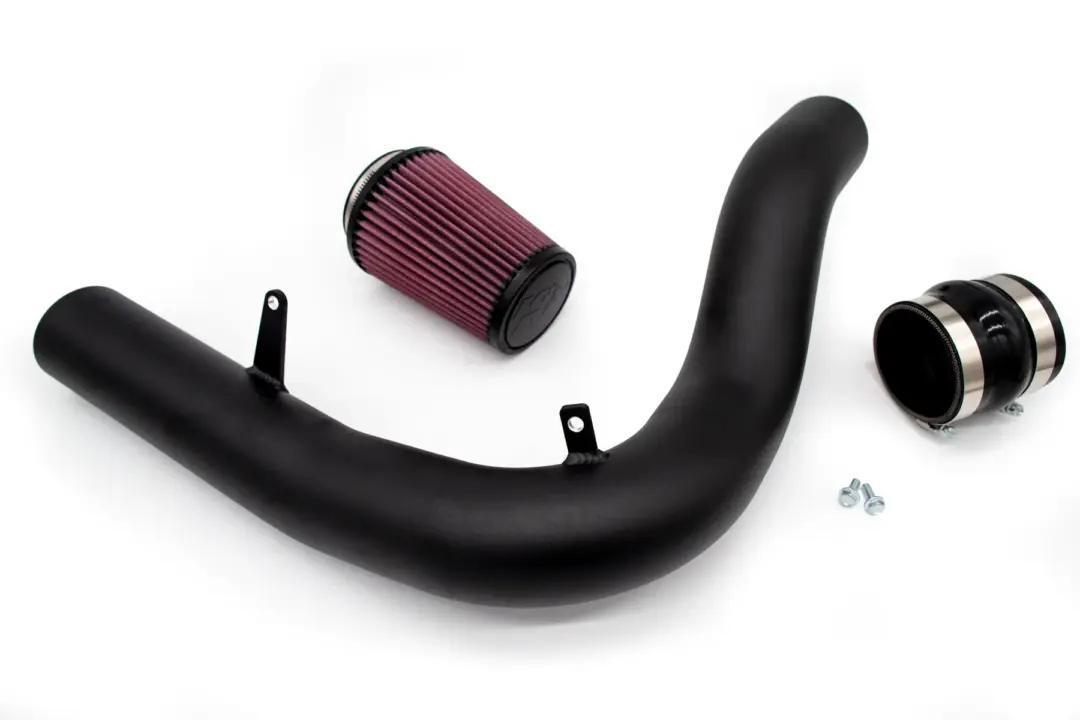

- 3” cold-air intake with filter
- 304 stainless midpipe with hanger (bolts to any 3” 86 exhaust kit)

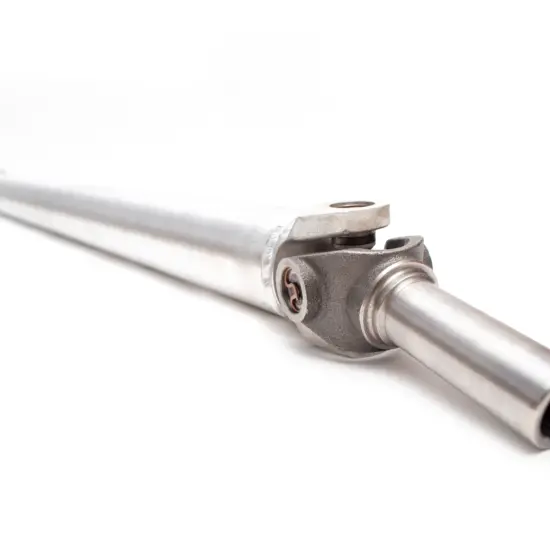

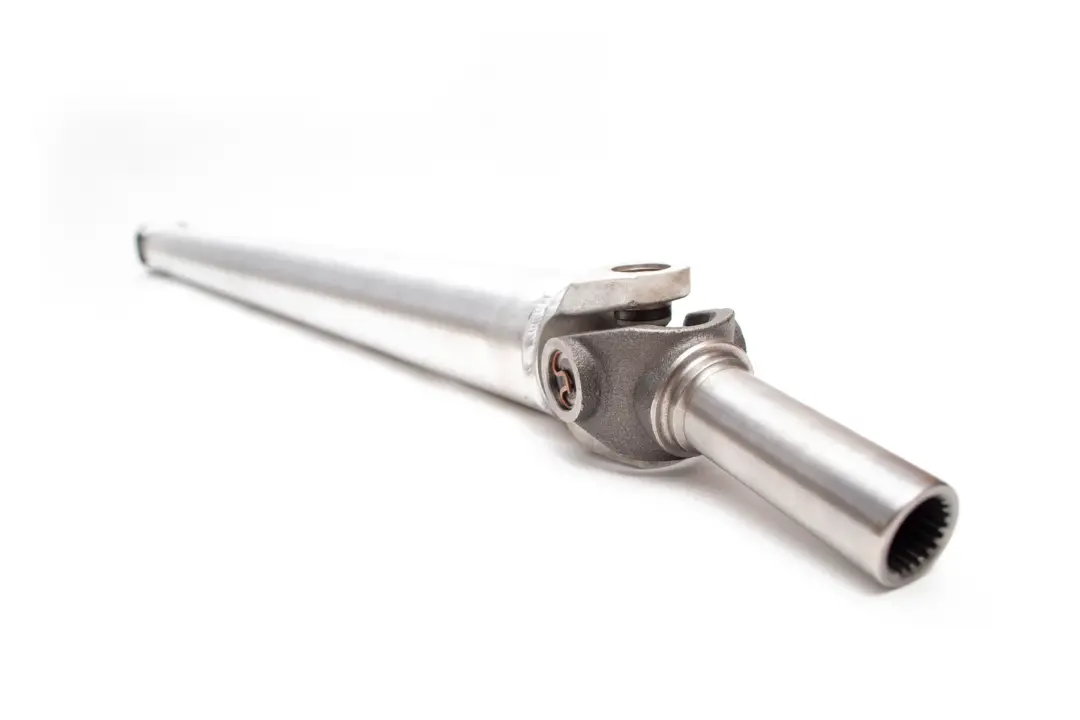

- 3” aluminium one-piece driveshaft

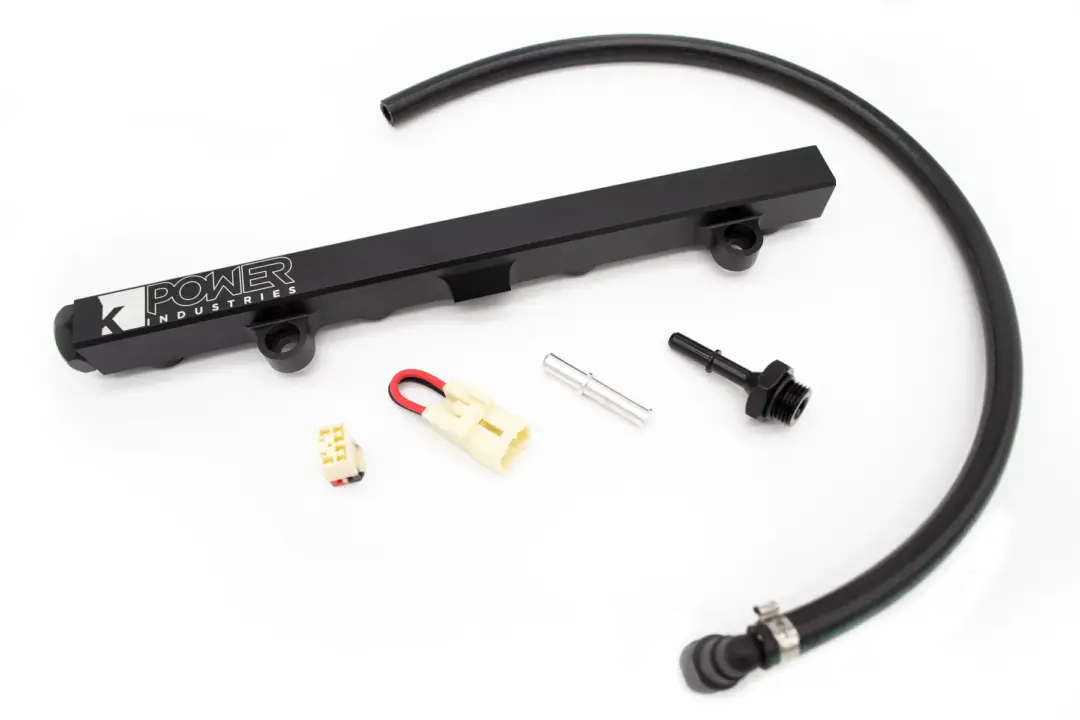

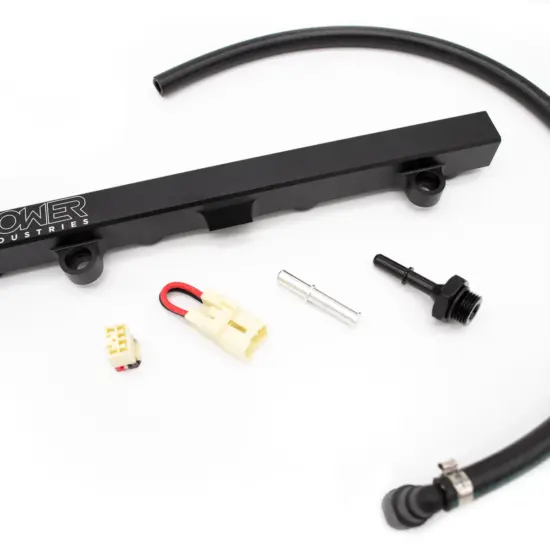

- KPower fuel rail
- Fuel line kit, E85 compatible

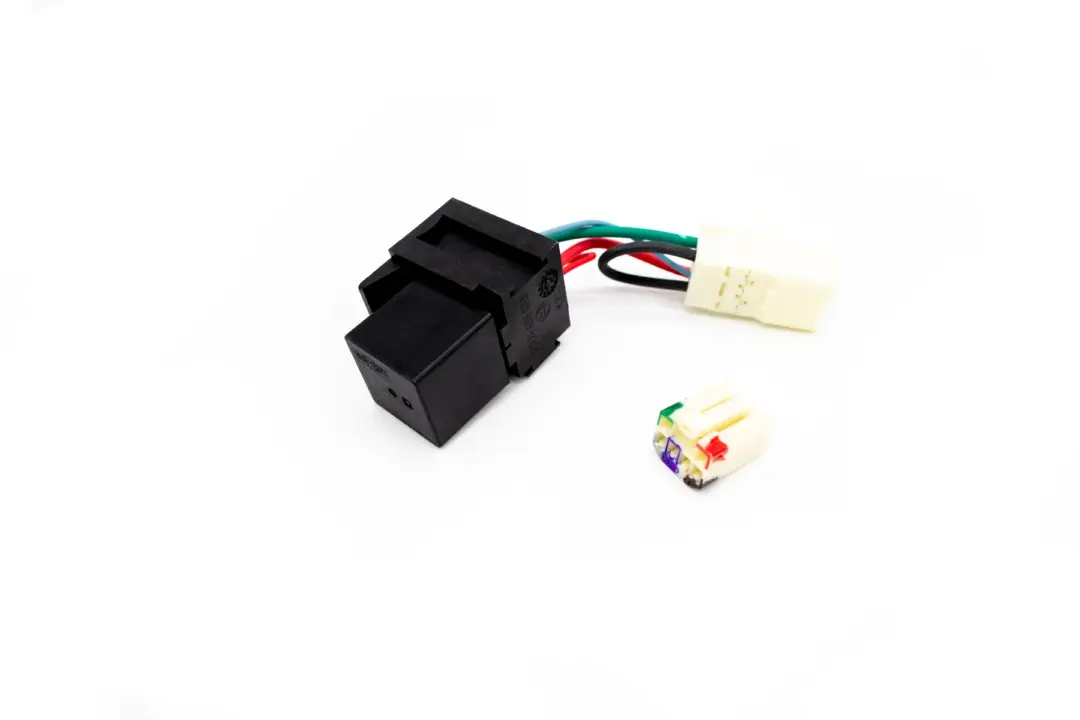

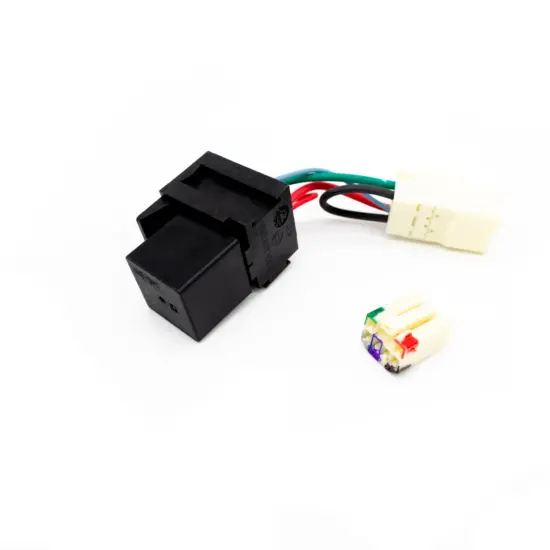

- Fuel pump relay kit

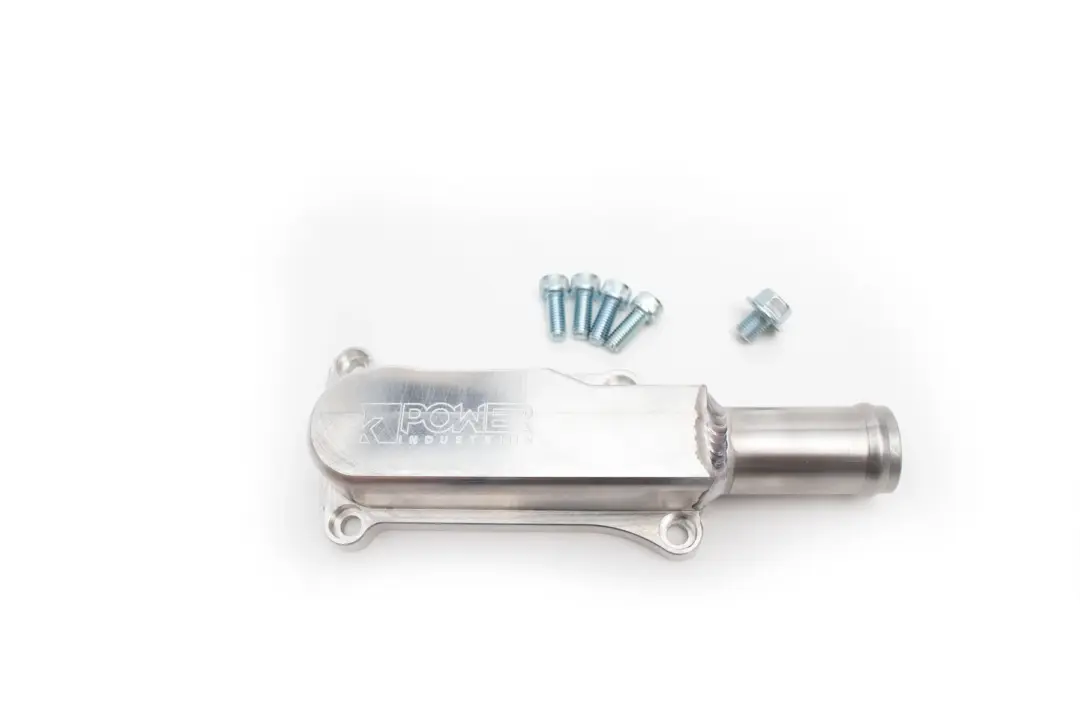

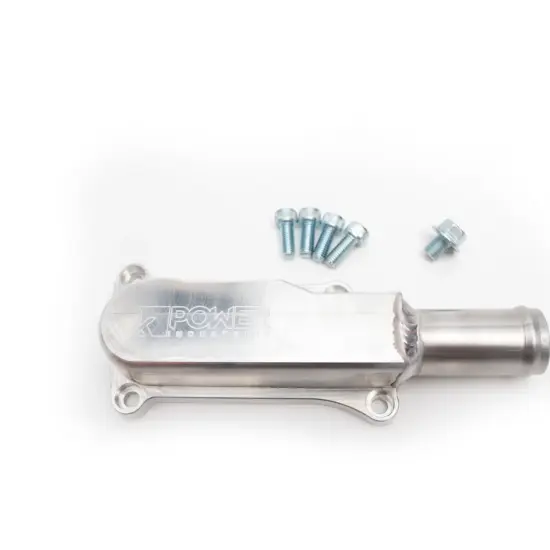

- Upper water neck for right-side engine bay routing
- Hybrid Racing thermostat inlet plug
- Accessory belt

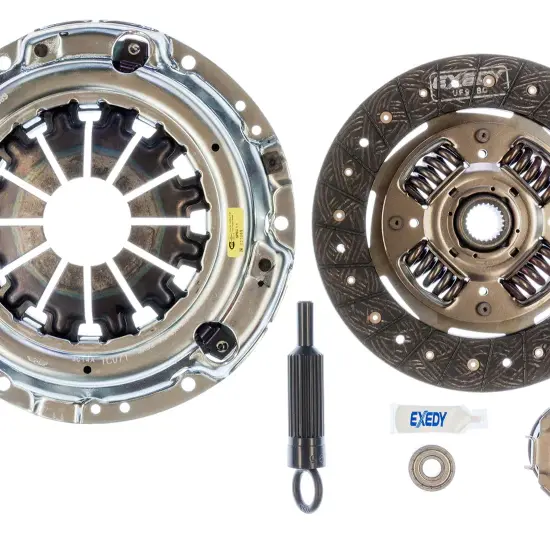

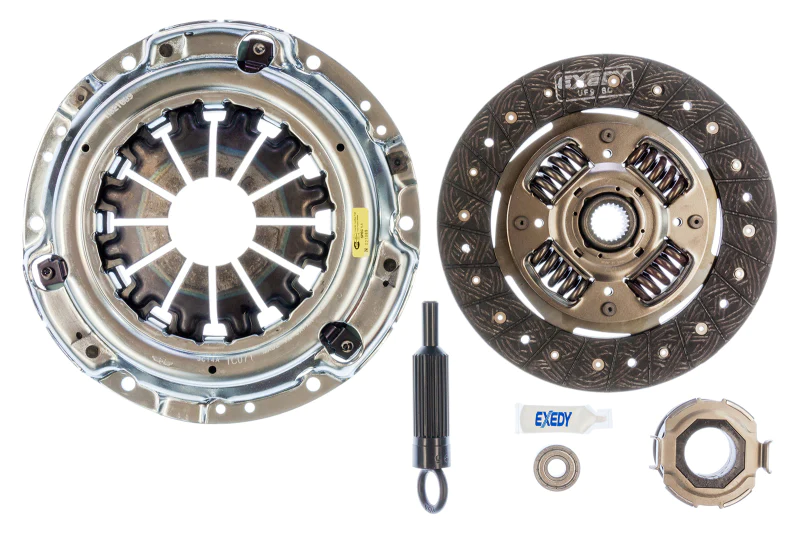

- Exedy organic clutch kit

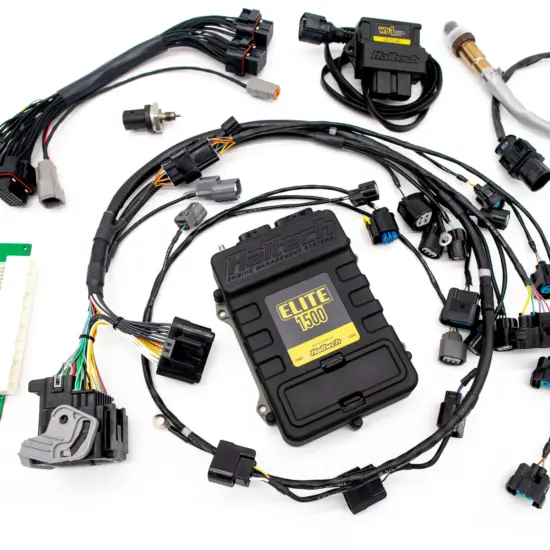

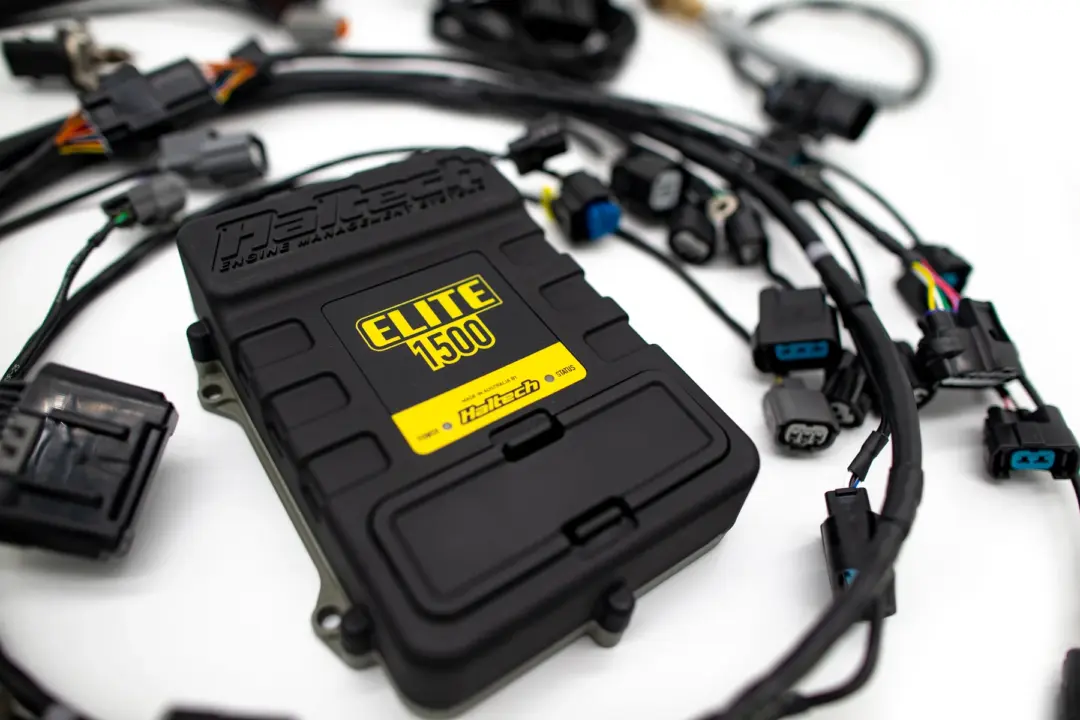

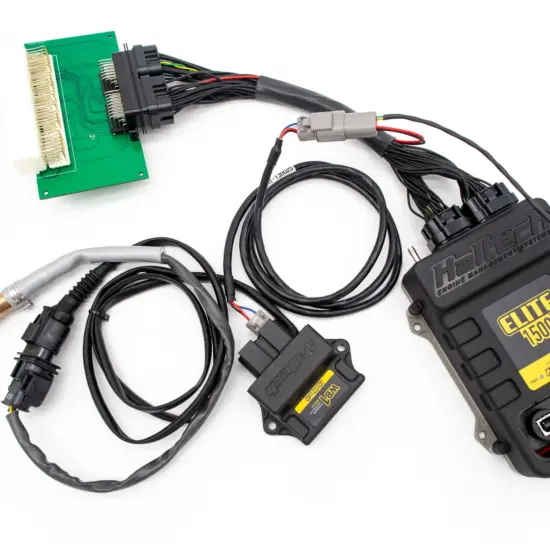

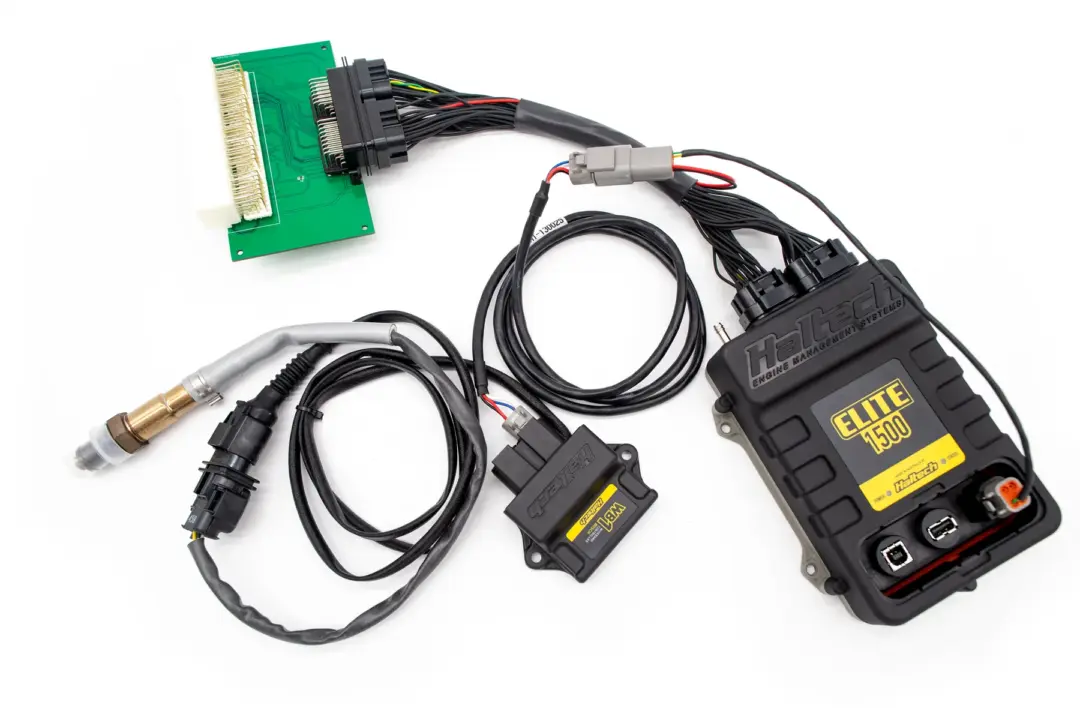

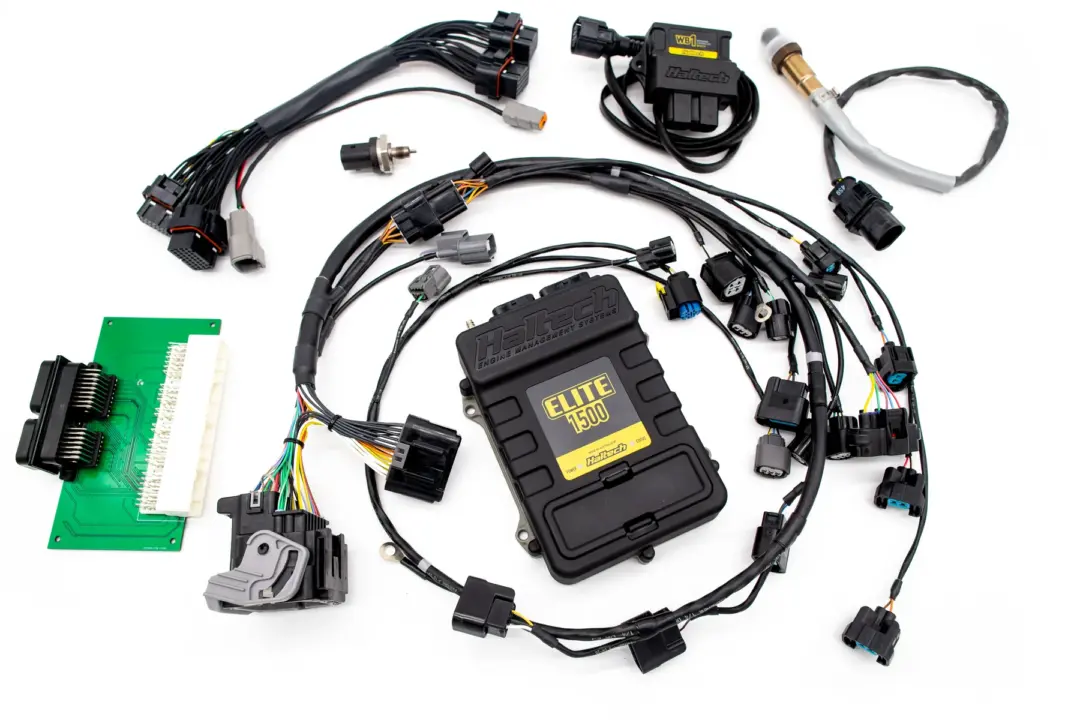

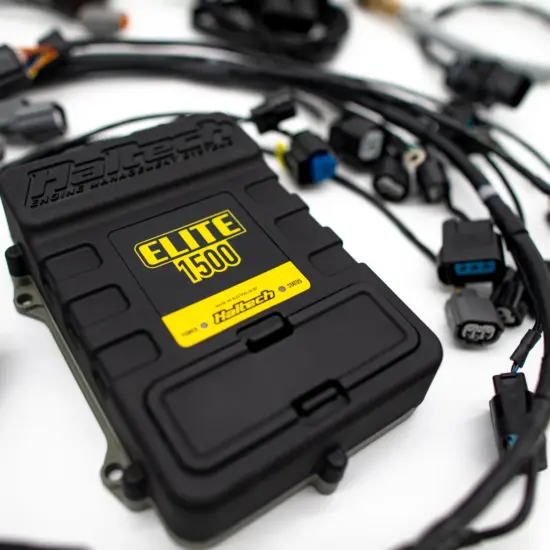

- Haltech Elite 1500 ECU, with base calibration
- Haltech CAN wideband sensor and controller
- Motorsports grade engine wiring harness, 100% plug and play
- ECU jumper harness
- ECU jumper board
- Bosch oil pressure and temperature sensor, with adapter

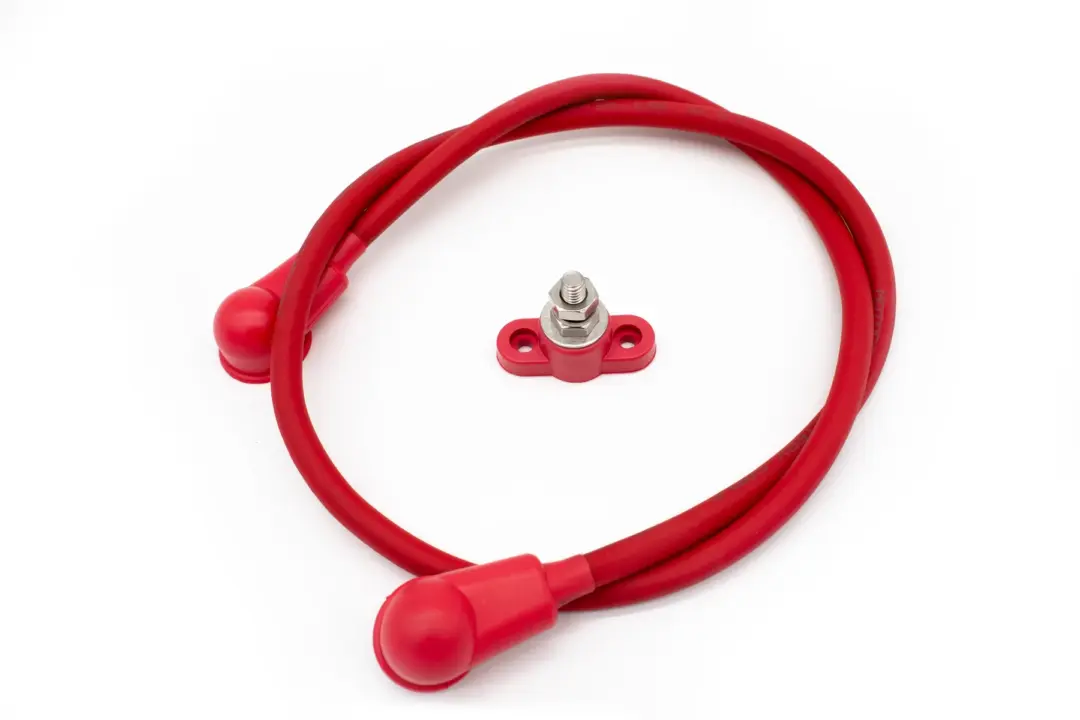

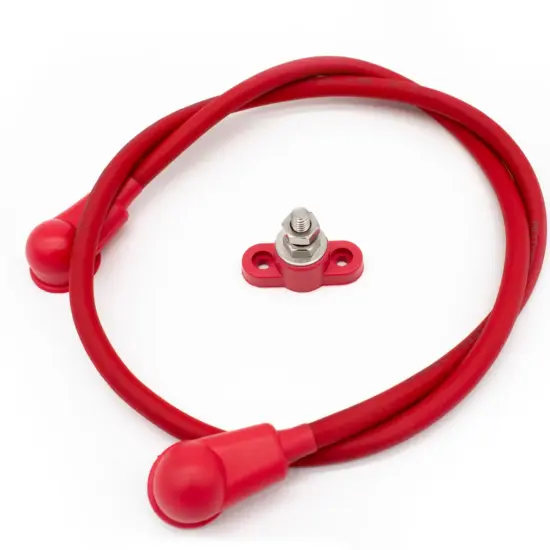

- Alternator extension cable with battery stud

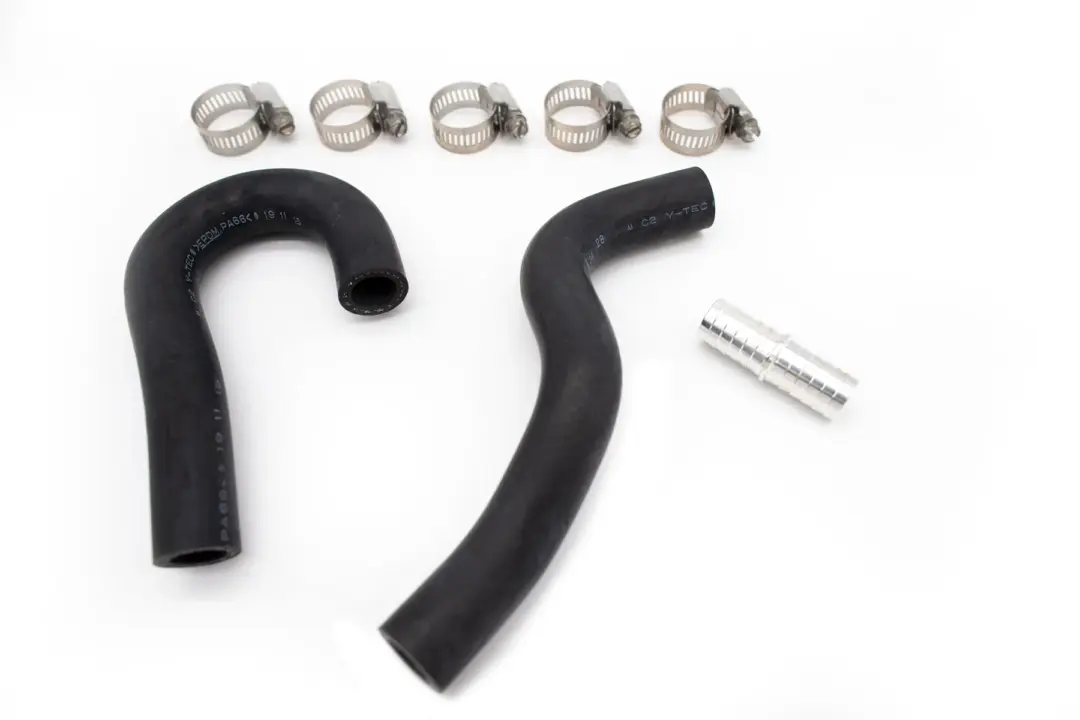

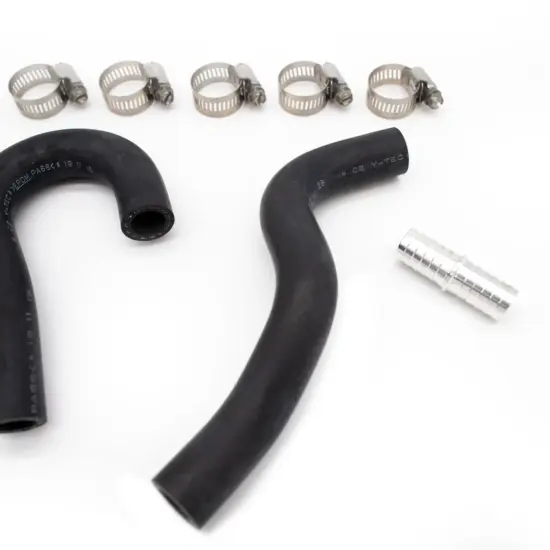

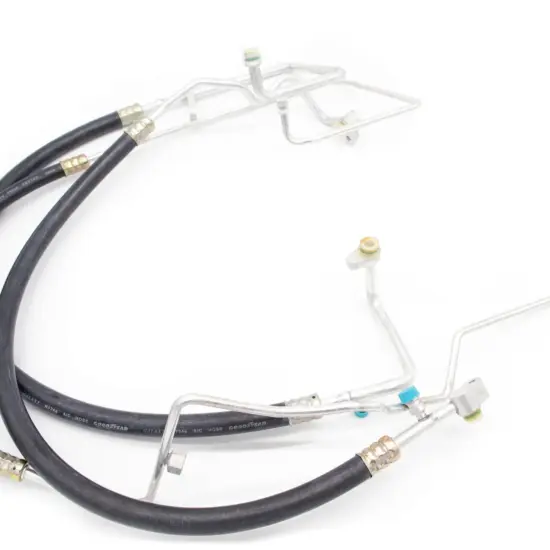

- Optional air conditioning and heater hoses
- Detailed installation guide (available for download here)
Important Notes:
- All products are designed for off-road motorsports use only. Users are responsible for complying with all local laws in their county, state, and country.
- KPower’s engine wiring harness is designed for 2004-2008 K24A sensors, including the crank sensor, knock sensor, and injectors. It is also wired for a 2006-2008 Acura TSX A/C compressor. All K24 compressors are not the same.
- If you plan on using injectors other than OEM K24A injectors, please specify at checkout and we’ll swap in the appropriate injector sub-harness free of charge.
- These engine mounts fit the following engine blocks: K24A2, K24A3, K24A4, K24A8, K20Z3 and the JDM K24A. They do NOT fit K20A2, K20Z1, or K24A1 blocks due to incompatible bolt-hole locations on the left side of the block. Please make sure you source the correct block for your project.
Additional information
Additional information
| Sump | Original pan for K20 pump, RBB K24 pan for balance shaft pump |
|---|---|
| Clutch | Exedy OEM Organic, No clutch |
| Air Condition and Heat | No, Yes |
