CSF’s industry-leading reputation and deep knowledge of high-performance BMW cooling systems is second to none. CSF is proud to announce its new halo product, the “Level-Up” Charge-Air-Cooler Manifold for the 2021+ G8X M3/M4 platform. CSF set out to create a charge-air manifold that would not only match the S58 engine performance, but take it to a whole other level with its ultra high performance features and durability.

CSF worked closely with its strategic manufacturing partner PWR and local R&D Partner Studio RSR on the development of the “Level-Up” Charge-Air-Cooler Manifold. The relationship with PWR offers CSF access to exclusive cutting edge Formula 1 grade technology, while Studio RSR offers expertise in real world race experience and hands on mechanical knowledge of the G8X platform.

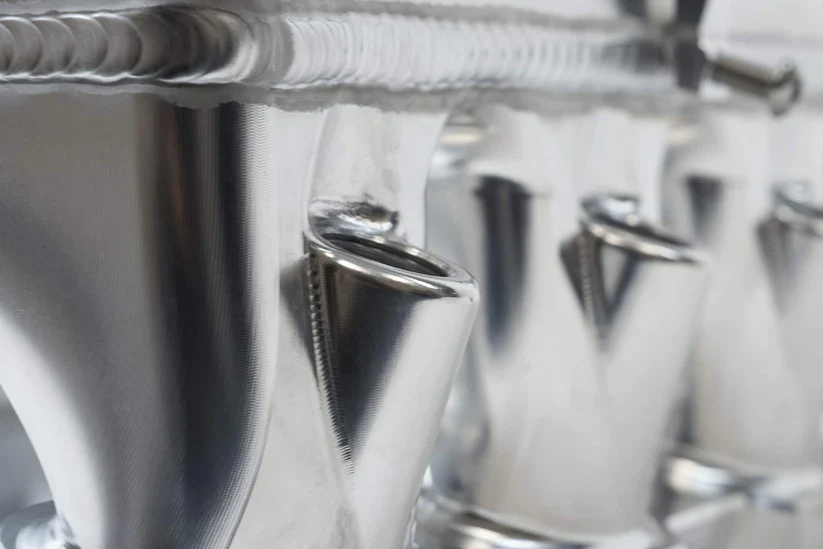

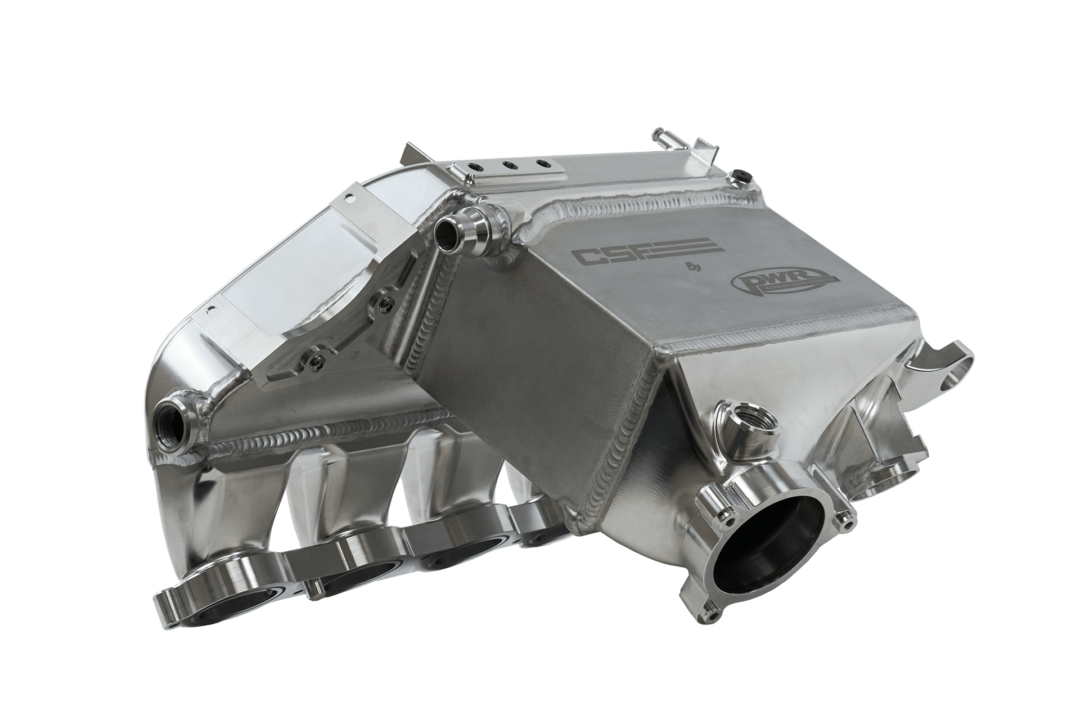

The manifold is fully made from the highest grade billet aluminium. Each part is CNC machined with the highest precision and TIG-welded to form a single air-to-water charge-air-cooler that is integrated into the intake manifold. The CSF manifold is not only capable of achieving the highest levels of performance of the S58 engine, but it’s all metal design is capable of withstanding extreme boost levels.

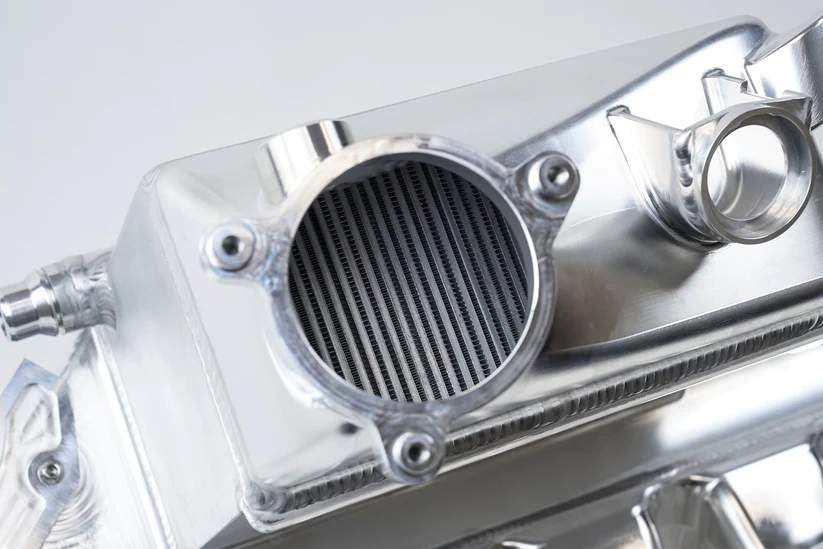

The ultra high performance liquid-to-air core is made by PWR. This Bar & Plate core is pressure tested to 120 psi to ensure it will withstand the high boost levels that anyone can throw at it. Feedback from the community has shown the OEM core which is crimped onto plastic end tanks is prone to failure starting at just 27psi) of boost pressure.

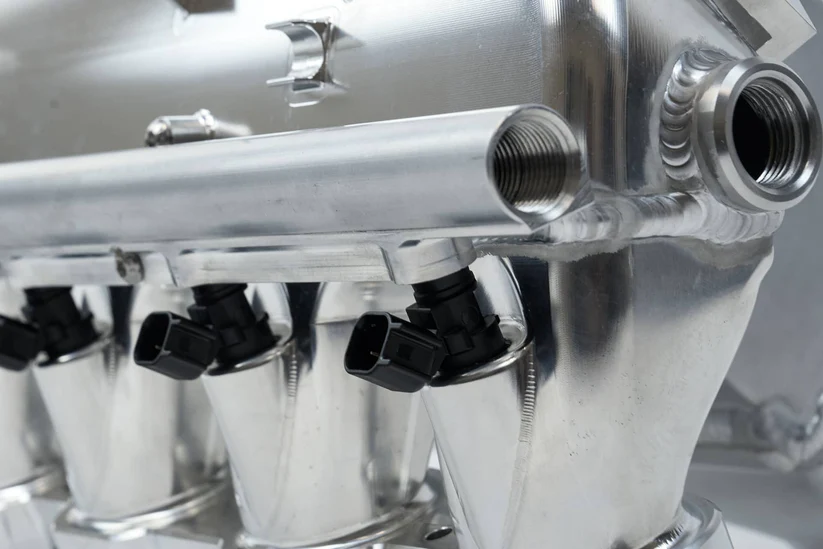

Adding power always requires more fuel. Similar to the industries best selling B58 “Super Manifold” (CSF #8200), the G8X M3/M4 S58 “Level-Up” Manifold features a top feed port injection system. The injector bungs are machined directly into the intake runners. The kit includes both the Fuel Rail and CNC Machined Block-Off Caps for non-use.

In addition, the manifold also has integrated ports on each runner for nitrous or water/methanol injection. Individual ports for each runner allows for maximum control and tuning.
